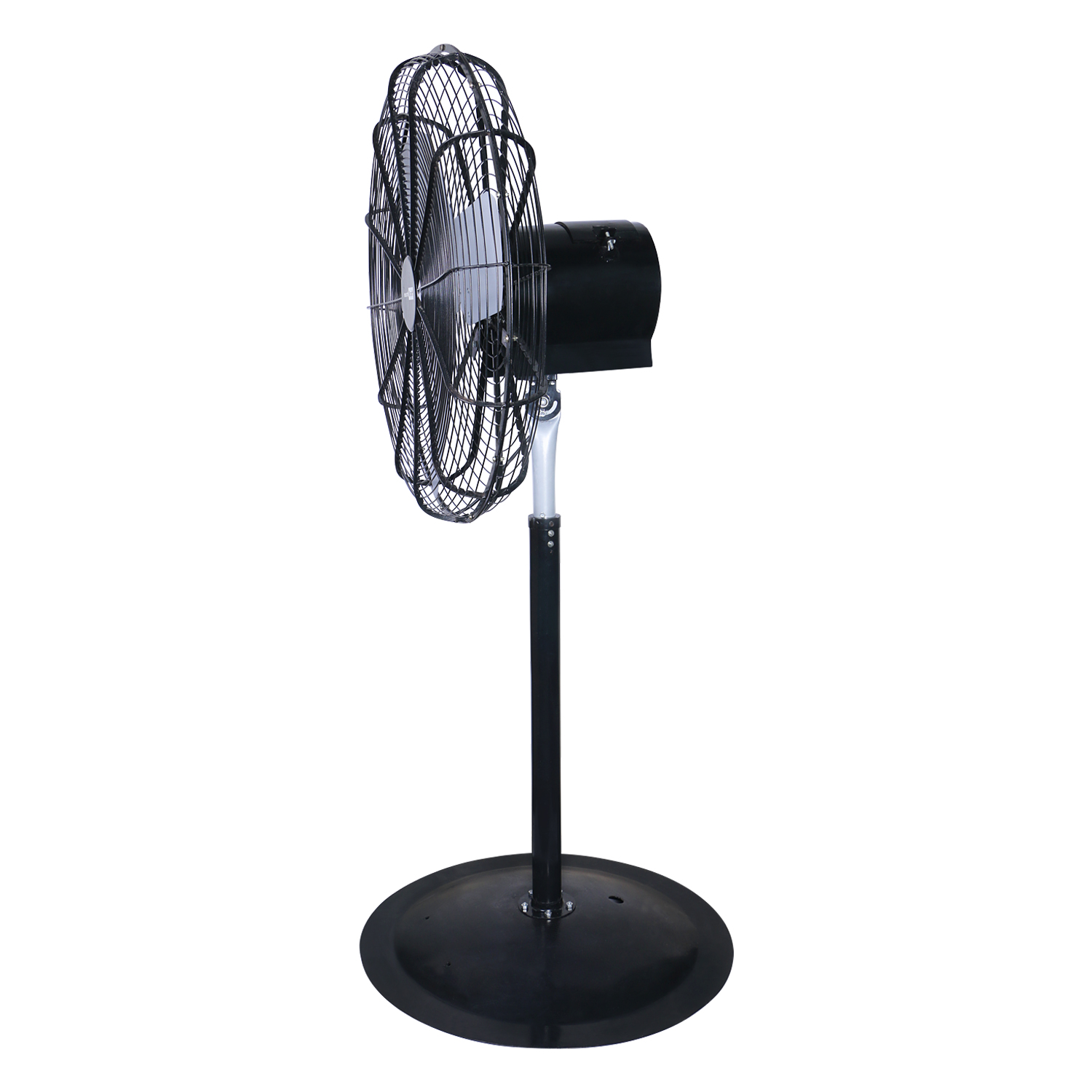

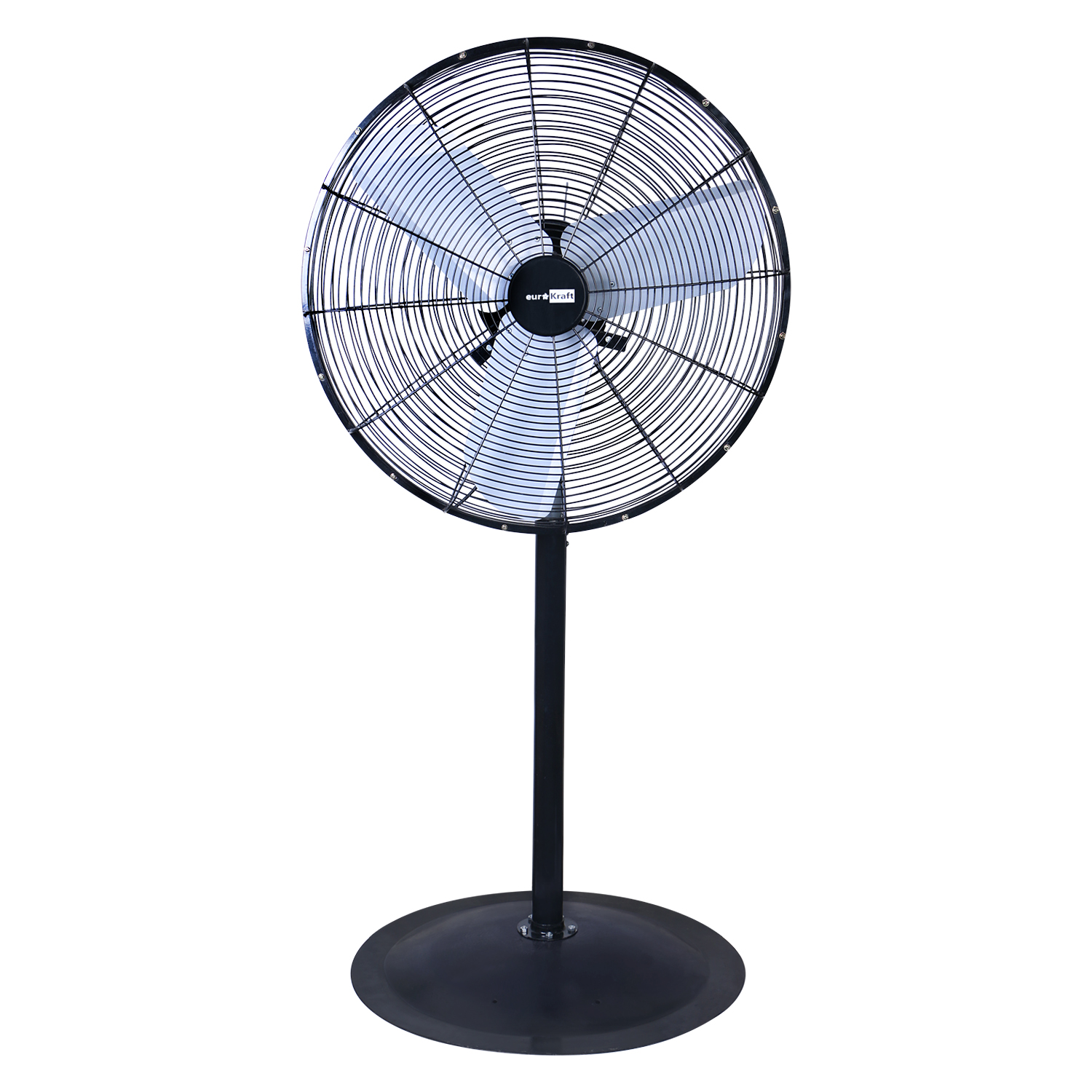

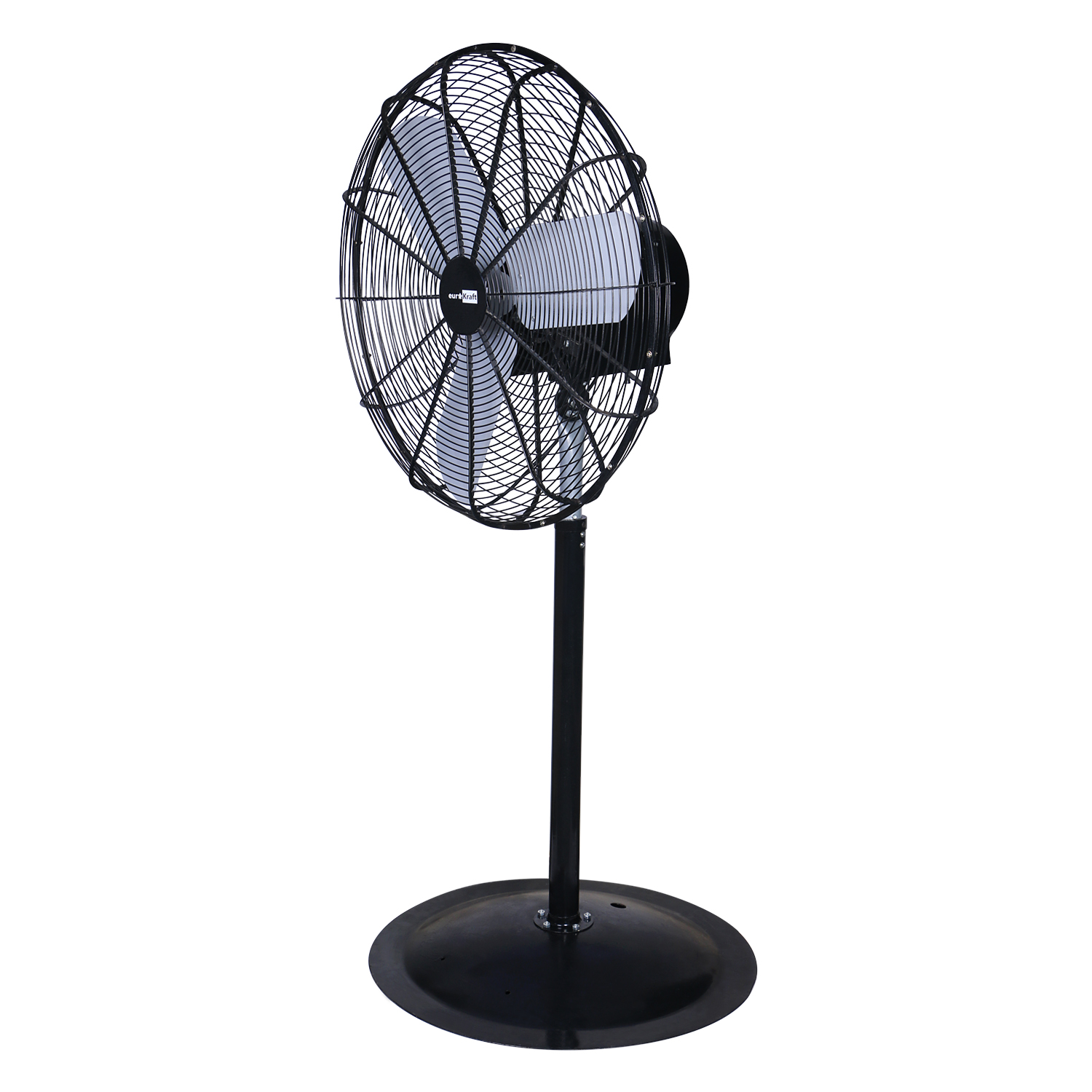

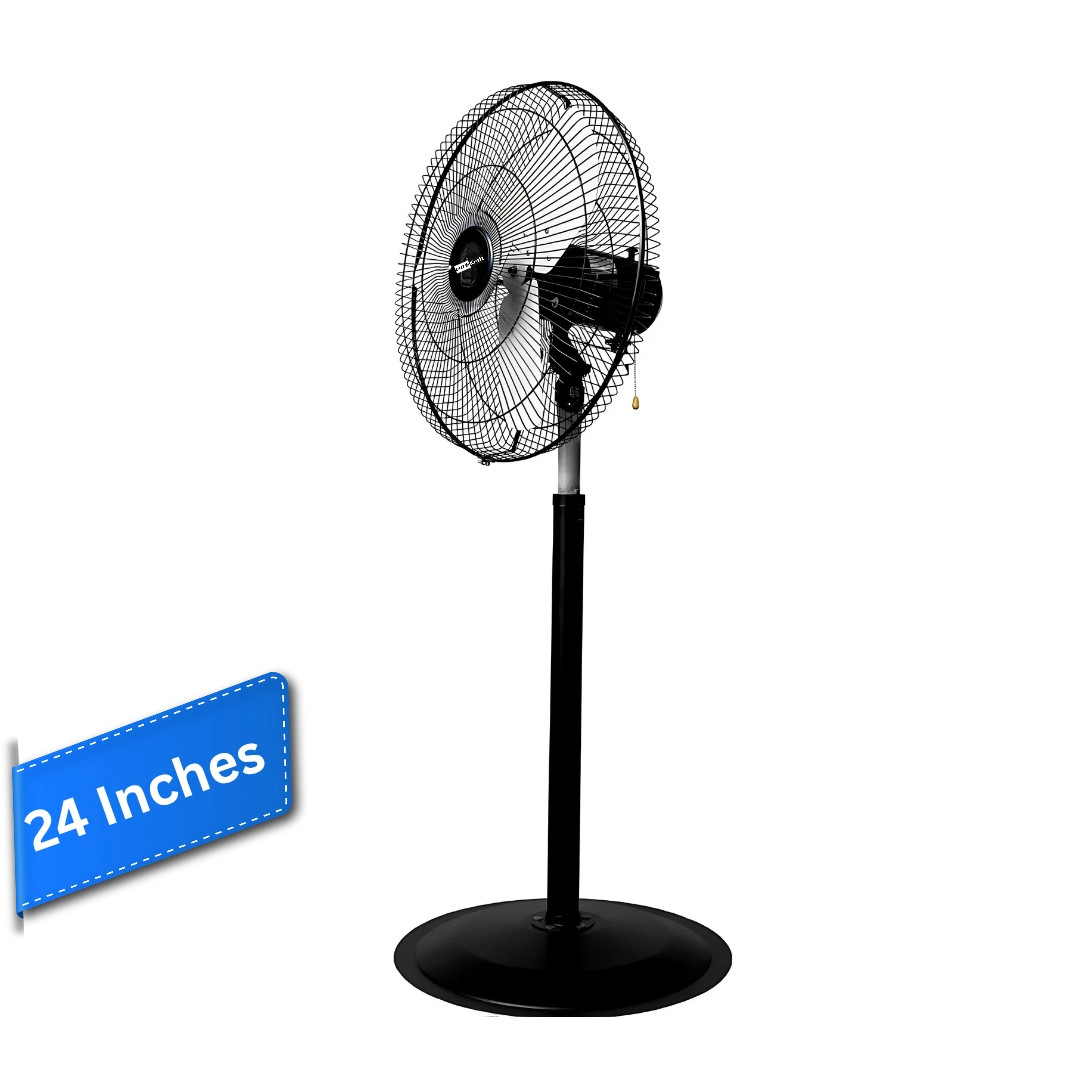

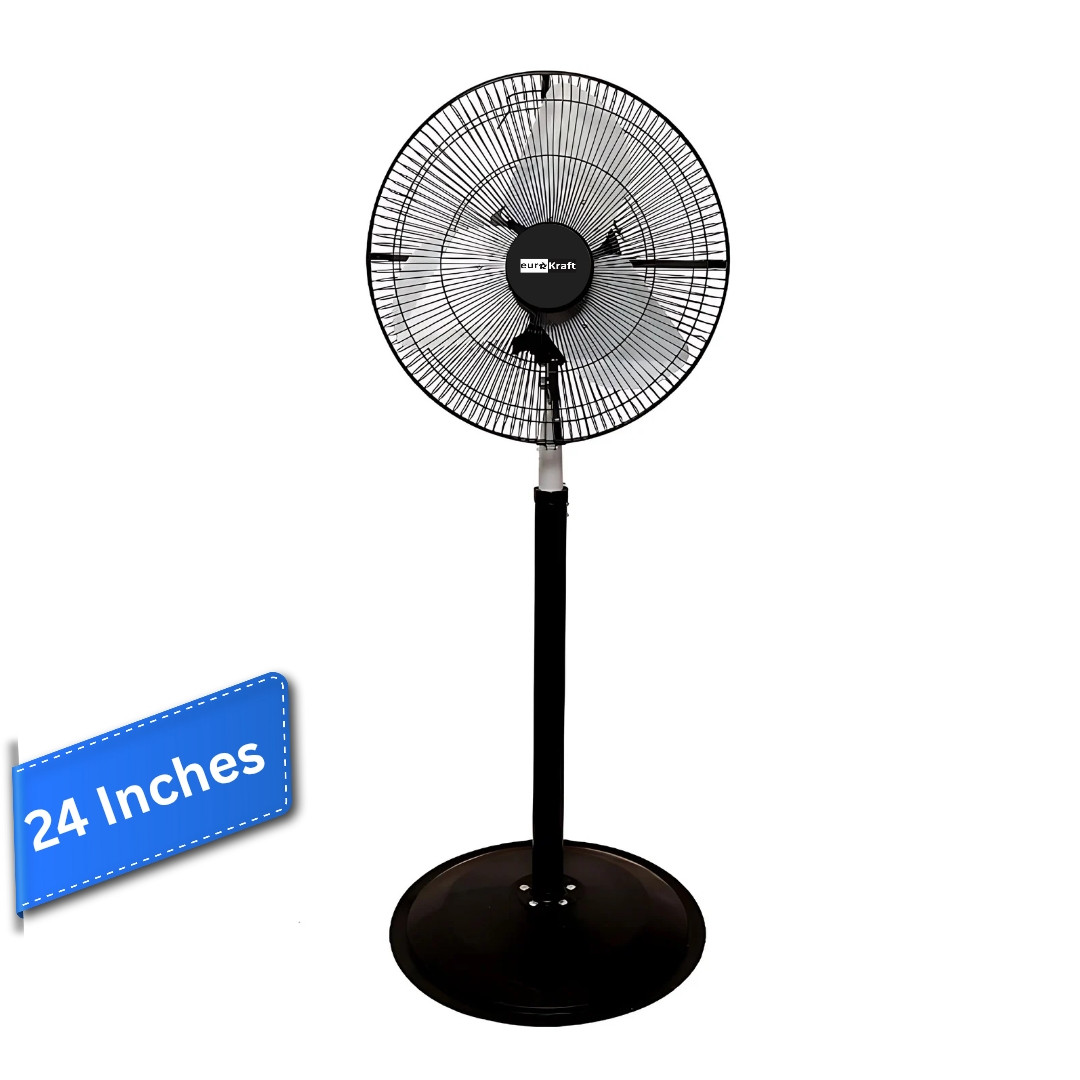

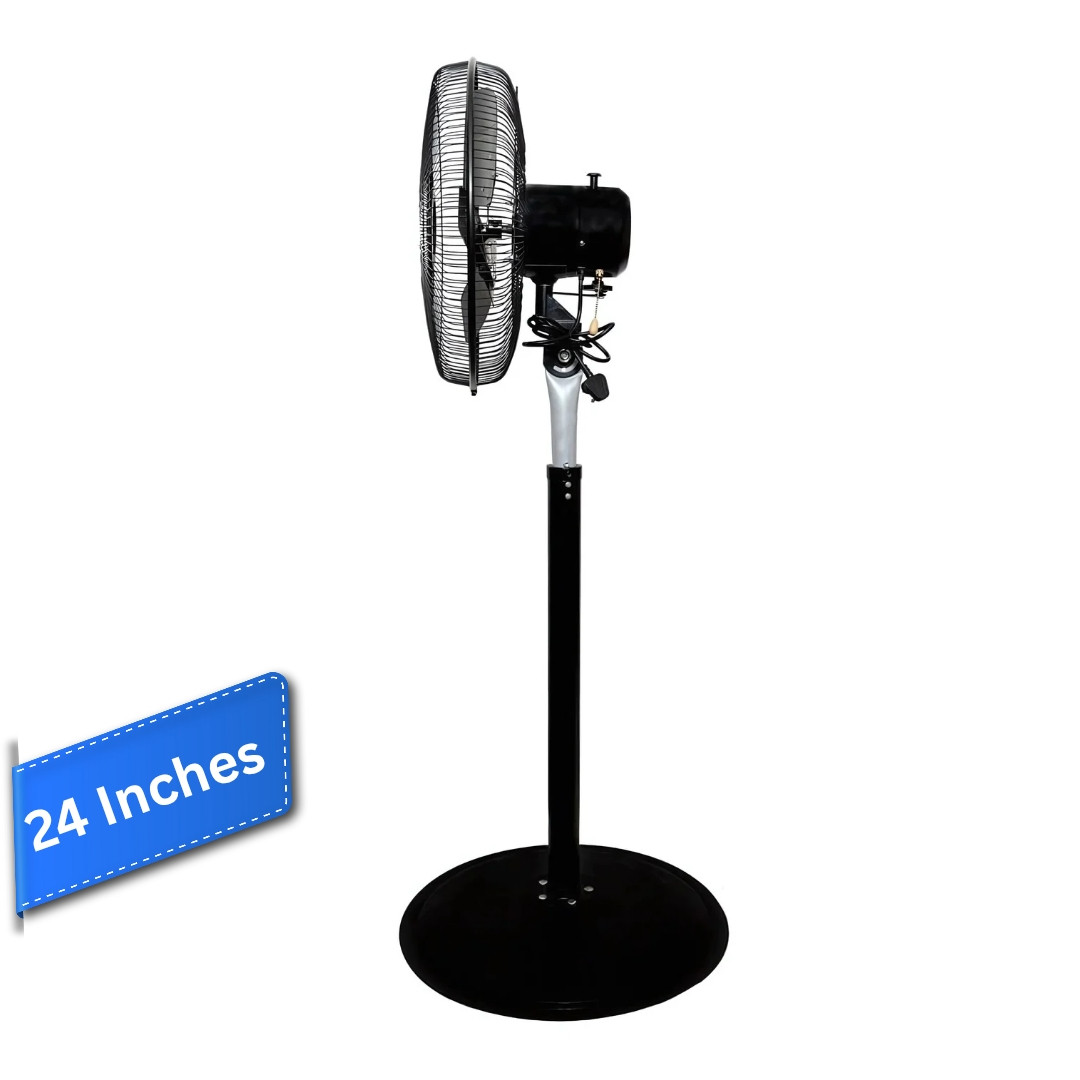

24" Pedestal Industrial Air Circulators
FEATURES
1)The fan has heavy duty 2 or 3 speed fully enclosed 230 volt motor.
2)The PSC motor of fan is equipped with pre-lubricated ball bearing.
3)The fan guard meet international safety norms (10mm gap for injury protection).
4)The motor has automatic thermal overload protection (T.O.P).
5)Up/down tilt adjustment as per your requirement.
6)The fan height adjustment from 4.5 to 7feet.
7)The fan oscillation can be set at 90 degrees sweep or straight flow.
8)Blades are dynamically balanced with individual replacement facility.
9)The fan are easy to assemble.
10)All fans are powder coated and chrome plated for lifetime durability.
TECHNICAL SPECIFICATIONS
Size:24"(600mm)
H.P.-1/4
R.P.M-1400/1200/1000
Wattage-200
Air Delivery-263M3/Min
| Model | Pedestal Air Circulator Fans | Size | H.P | R.P.M | Wattage | Air Delivery(m3/min) | |
|---|---|---|---|---|---|---|---|
| PDF-18 | Eurokraft 18Inch Oscillating Pedestal Fan | 18Inch(450mm) | 1/6 | 1400/1200/1000 | 100 | 125 | |
| PDF-20 | Eurokraft 20Inch Oscillating Pedestal Fan | 20Inch(500mm) | 1/6 | 1400/1200/1000 | 120 | 140 | |
| PDF-24 | Eurokraft 24Inch Oscillating Pedestal Fan | 24Inch(600mm) | ¼ | 1400/1200/1000 | 200 | 263 | |
| PDF-30 | Eurokraft 30Inch Oscillating Pdestal Fan | 30Inch(750mm) | ¼ | 1400/1200/900 | 250 | 370 |
